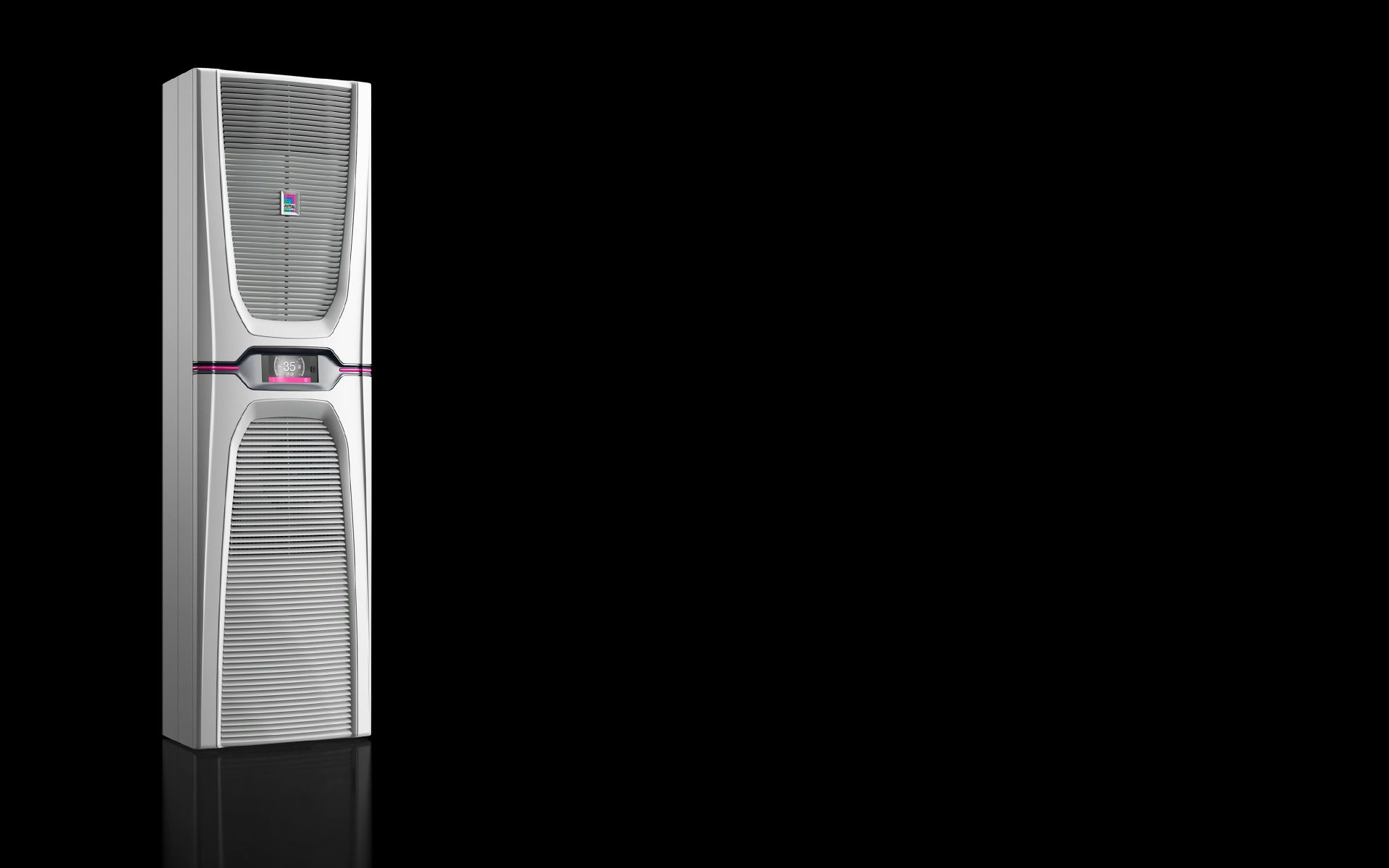

Wall-mounted cooling unit Blue e+ 1.6 - 5.8 kW
Yorum Yap
Rittal SK 3186.930, Blue e+ serisi elektrik panolarının kapı veya yan yüzeyine monte edilen 1.6-5.8kW soğutma kapasiteli bir pano klimasıdır. Pano içindeki sürücü, PLC ve güç elektroniği bileşenlerini aşırı ısınmaya karşı koruyarak ısı kaynaklı arıza ve duruş riskini azaltır. Ürün, Klimasun güvencesiyle orijinal olarak tedarik edilir; kapasite seçimi ve montaj tipi konusunda teknik ekibimizden destek alabilirsiniz.
Teknik Özellikler
| Ürün kodu: | SK 3186.930 |
|---|---|
| Avantajlar | Average 75% energy savings thanks to speed-regulated components and heat pipe technology Suitable for international use due to a unique multi-voltage capability Longer service life of the components inside the enclosure and the cooling unit due to component-friendly cooling Intuitive operation due to touch display and intelligent interfaces |
| Malzeme | Sheet steel |
| Renk | RAL 7035 |
| Teslimat kapsamı | Nano-coated condenser Integral electric condensate evaporation Assembly parts Fully wired ready for connection (plug-in terminal strip) |
| Opsiyonlar | For remote monitoring and networking of cooling units and chillers in the Blue e+ generation, please use the IoT interface (Model No. 3124.300). Increase machine availability and process reliability with remote monitoring of device data, statuses and system messages. |
| Total cooling output to DIN EN 14511 | Cooling output L35 L35/50 Hz: 2 kW Cooling output L35 L35/60 Hz: 2 kW Cooling output L35 L50/50 Hz: 1.29 kW Cooling output L35 L50/60 Hz: 1.29 kW |
| Anma işletim gerilimi | 110 V - 240 V, 1~, 50 Hz/60 Hz 380 V - 480 V, 3~, 50 Hz/60 Hz |
| Not | Please observe the mounting instructions. null |
| Not | Tolerance: 110 V -10% (99 V) and 240 V +10% (264 V) / 380 V -10% (342 V) and 480 V +6% (509 V) |
| Anma güç girişi | 0.73 kW |
| Air throughput (unimpeded air flow) | External circuit: 1,250 m³/h Internal circuit: 1,250 m³/h |
| Energy efficiency ratio (EER) 50/60 Hz L35 L35 | Refrigeration factor L35 L35 (EER) 50 Hz: 3.5 Refrigeration factor L35 L35 (EER) 60 Hz: 3.5 |
| Seasonal energy efficiency ratio (SEER) 50/60 Hz | 8.1 |
| Tasarım | wall-mounted |
| Ölçüler | Width: 450 mm Height: 1,600 mm Depth: 294 mm |
| Gerekli montaj kesiti | Cut-out width: 433 mm Cut-out height: 1,579 mm |
| IEC 60529 koruma sınıfı | Internal circuit IP 55 |
| NEMA koruma sınıfı | UL Type 3R/12 |
| Soğutucu akışkan | Refrigerant: R134a Quantity: 1.15 kg Global Warming Potential (GWP): 1,430 CO₂ equivalent (CO₂e): 1.64 t |
| Sıcaklık kontrolü | e+ controller (factory setting +35 °C) |
| İşletme sıcaklık aralığı | -20 °C...60 °C |
| Depolama sıcaklık aralığı | -40 °C...70 °C |
